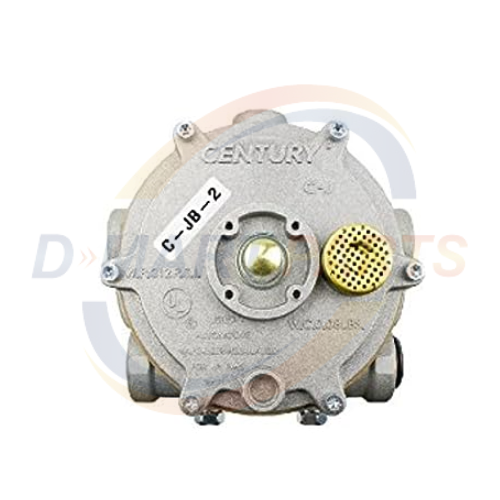

JB-2 Model J JB JB-2 CENTURY Regulator Vaporizer for LP Gas Forklift Universal

General: The JB-2 Regulator / Converter / Vaporizer is an LPG liquid withdrawal high pressure regulator. This regulator provides excellent fuel delivery with liquid-cooled engines up to 100 HP. For indoor applications by NFPA definition, a regulator is not considered a positive shut-off valve. An approved automatic shut-off device is required to be installed. This will shut off the fuel supply should the engine fail while unattended. Shut-off devices come in vacuum- or solenoid-actuated configurations.

Operation: Liquid propane enters the regulator and then is vaporized using heat from the engine’s coolant. Tank pressure is reduced to approximately 1.5 psi. As negative pressure is transmitted from the carburetor to the regulator, the regulator releases propane vapor to the carburetor. Some regulators are equipped with a primer button. Correctly installed regulator should not require priming. If priming is required, a maximum duration of only 1 second should be used.

• Propane liquid withdrawal vaporizing regulator
• For liquid-cooled engines up to 100 HP
• deal for mobile industrial equipment applications
• Rated to 312 psi maximum inlet pressure
