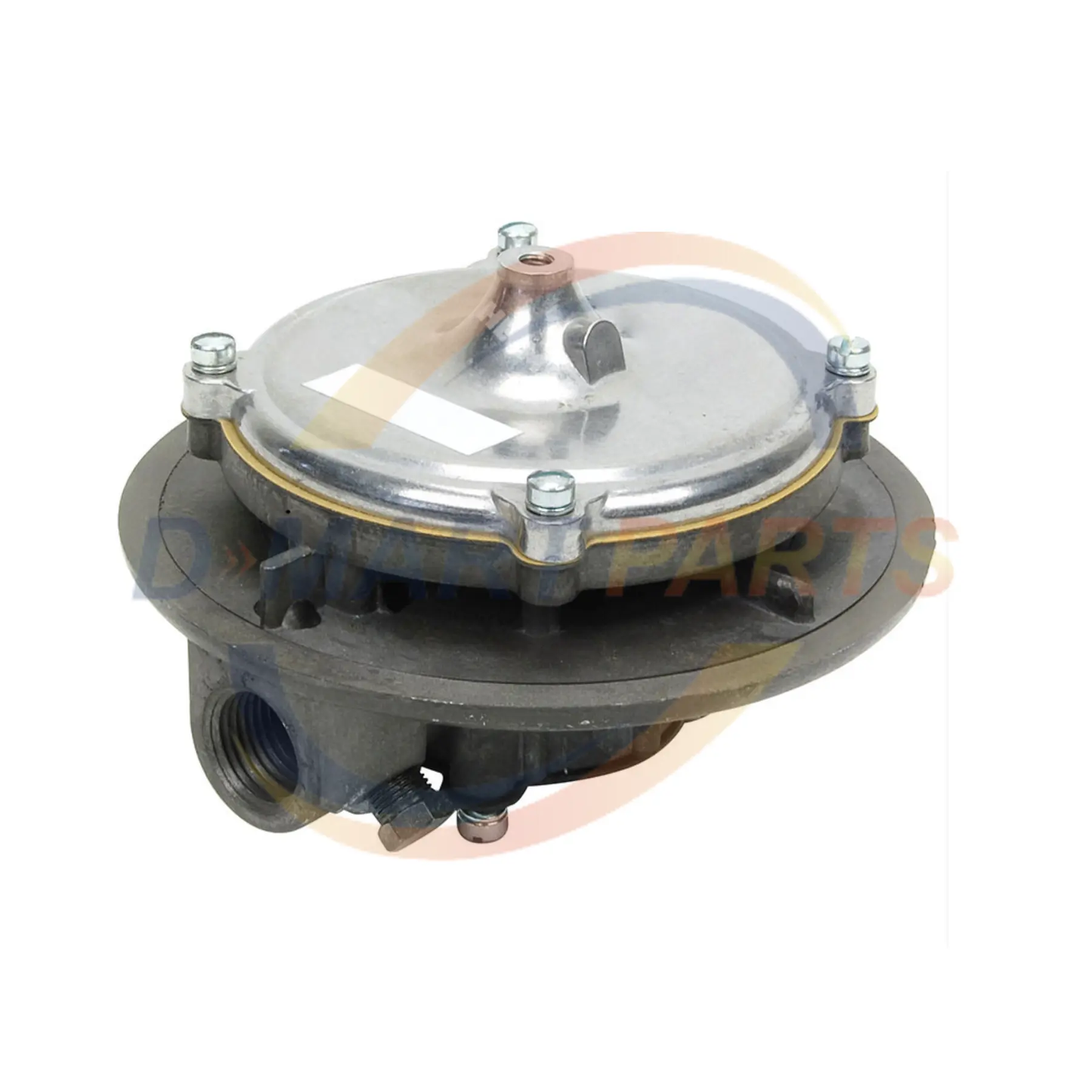

CA125M-2 Impco style propane mixer carburetor silicone CA125M vertical LPG system forklift
CA125M-2 Impco style propane mixer carburetor silicone CA125M vertical LPG system forklift
Regular price
$139.98 USD
Regular price
Sale price
$139.98 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
HYDRIN DIAPHRAGM WITH LEAN AIR GAS VALVE ASSEMBLY
CA125M-2 is a vacuum lift mixer designed to reduce inlet restrictions in dual fuel installations with lean air gas valve assembly. In some applications, inlet restrictions cannot be tolerated with a conventional gasoline carburetor as they will cause it to run rich. The CA125M-2 provides an electrically-operated solenoid that directs manifold vacuum to the top diaphragm chamber when gasoline operation is desired. This provides full air valve lift, reducing air inlet restriction to a minimum. Century, Mixer with silicone diaphragm
INTAKE HOLE 1 13/16"
| Specifications | |
|---|---|
| Fuel Type | LPG Vapor or Natural Gas |
| Inlet Pressure | -1.5" w.c. (-0.37 kPa) |
| Operating Temperature Range | -40° F to +250° F (-40° C to +121° C |
| Mounting Position | Vertical |
| Diaphragm Material | Silicone |
| Horsepower | Up to 73 hp (54 kW) @ 118 CFM (55.7 L/s) and 2.0” in Hg manifold depression |
