D Mart Parts

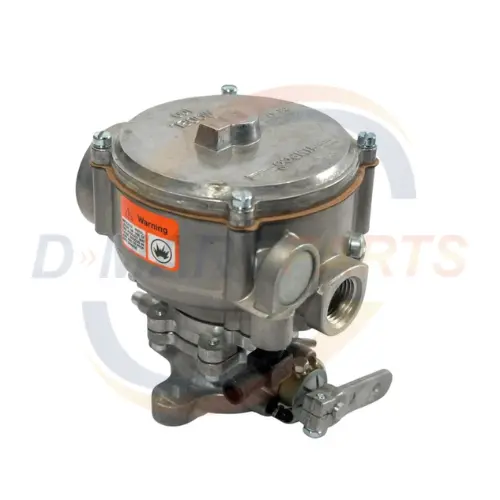

CA100-272 Carburetor mixer forklift LPG gas propane systen universal
CA100-272 Carburetor mixer forklift LPG gas propane systen universal
Regular price
$330.00 USD
Regular price
Sale price
$330.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Intake hole: 1 7/16"
Air Horn: 2"
Bolt to bolt 2 3/4"
100% Flow
Low Caterpillar
The Model 100 is a single diaphragm air-gas valve carburetor/mixer. It offers a 90 degree air inlet to provide low overhead clearance, and is available with several Air Horn and throttle body options. This unit is available for LPG Vapor and Natural Gas applications with air flow requirements up to 197 CFM (93 L/s). The Model 100 is also available for feedback applications with the ‘FB’ designation.
The 100 mixer provides a convenient 1/8 NPT balance port and two separate air valve vacuum ports. Additional low speed, idle mixture control can be obtained to lean air/fuel mixtures through the use of optional shims.
specifications |
|
|---|---|
| Fuel Type | LPG Vapor or Natural Gas |
| Inlet Pressure | -1.5” w.c. (-0.37 kPa) |
| Operating Temperature Range | -40°F to +250°F (-40°C to +121°C) |
| Mounting Position | Vertical |
| Diaphragm Material | Hydrin or Silicone |
| HP/kW Rating | 106 HP (79 kW) @ 170 CFM (80 L/s) and 1.5” in Hg manifold depression 123 HP (91.7 kW) @ 197 CFM (93 L/s) and 2.0” in Hg manifold depression |
