CA100-110 Carburetor mixer forklift LPG Gas Propane universal

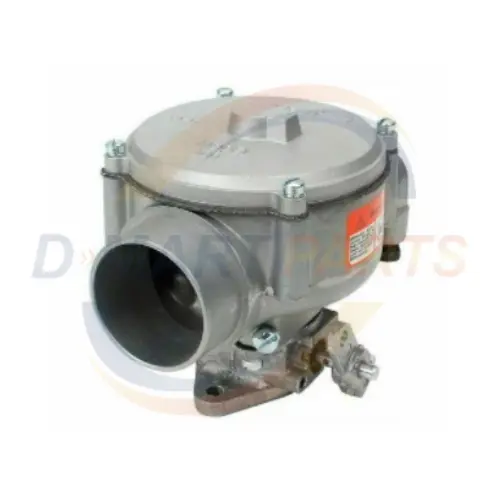

THE MODEL 100 SERIES IS A SINGLE DIAPHRAGM AIR-GAS VALVE CARBURETOR/MIXER.  IT OFFERS A 90-DEGREE AIR INLET TO PROVIDE LOW OVERHEAD CLEARANCE, AND IS AVAILABLE WITH SEVERAL AIR HORN AND THROTTLE BODY OPTIONS.  THIS UNIT IS AVAILABLE FOR LPG AND VARIOUS NATURAL GAS APPLICATIONS.  IT HAS BEEN SUCESSFULLY USED FOR OTHER HYDROCARBON-BASED VAPOR FUEL AS LOW AS 500 BTU.  THE MODEL 100 IS ALSO AVAILABLE FOR FEEDBACK APPLICATIONS WITH THE 'FB' DESIGNATION.

THE 100 MIXER PROVIDES A CONVENIENT 1/8 NPT BALANCE PORT AND TWO SEPARATE AIR VALVE VACUUM PORTS.  ADDITIONAL LOW SPEED, IDLE MIXTURE CONTROL CAN BE OBTAINED TO LEAN AIR-FUEL MIXTURES THROUGH THE USE OF OPTIONAL SHIMS.



                                     TECHNICAL SPECIFICATIONS



FUEL...........TYPE NATURAL GAS,     DIGESTER GAS

AIR FLOW CAPACITY............93 L/s (197cfm)@2.0 in Hg MANIFOLD DEPRESSION

HORSEPOWER RATING.........91.7 kW(123 hp)@2.0 in Hg MANIFOLD DEPRESSION

PORT SIZE.........................1/2 NPT

MATERIALS:

BODY: ALUMINUM

DIAPHRAGM: HYDRIN OF SILICONE

DIAPHRAGM: COVER ALUMINUM

 ITEM IS A SINGLE DIAPHRAGM AIR-GAS VALVE CARBURETOR WITH MIXER (CA100M-3)

THROTTLE BODY:  BT2-2-401

SAE FLANGE:  1"

[A]   CENTER TO  CENTER BOLT SPACING: 60.3mm (2.375"

[B]    BORE:   30.2mm (1.188")

[C]    MIXER AIR HORN DIA.: 52.4mm (2.063")

[D]    OVERALL WIDTH:  131mm (5.156")

[E]     NPT INLET:  1/2"

[F]     OVERALL HEIGHT:  117mm (4.625")

[G]     THROTTLE BODY HEIGHT:  36.5mm (1.438")

[H]     THROTTLE SHAFT DIA.:  6.4mm (0.250")

 [I]      FLANGE TO CENTER OF AIR HORN:  67.0mm (2.64")
