D Mart Parts

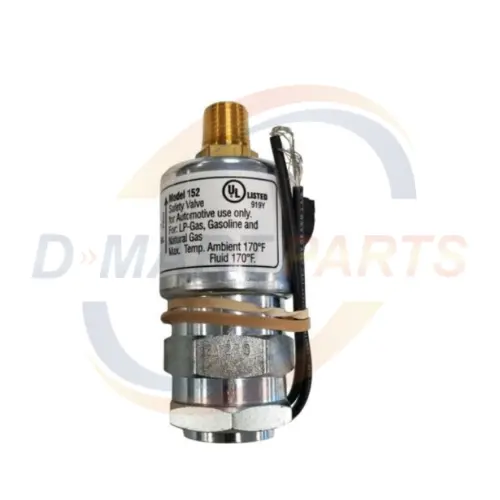

152 Solenoid Valve Lockoff Filter Shut-Off Inline Propane Gas LPG Gasoline
152 Solenoid Valve Lockoff Filter Shut-Off Inline Propane Gas LPG Gasoline
Regular price
$86.00 CAD
Regular price
Sale price
$86.00 CAD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
AFC-152 Lockoff Multi-Purpose Filter Shut-Off Inline Valve is 2 way normally closed solenoid valve with an inline filter that will provide On/Off control of air, gas and other media.
The filter provides high performance filtration (rated at 40 micron) and is replaceable. The valve has one inlet and one outlet and does not pass fluid or air until the coil is energized.
Pipe Size: 1/4"NPT Orifice: 0.110 Cv: 0.35 Max Pressure: 312 PSI
WITHOUT GROUND COIL, 1/4'' MNPT X 1/4'' FNPT
Engineered for use in automotive, industrial, and refrigeration applications.
Working pressure 30 PSI
100,000 cycle tested.
Lightweight, compact design features filter and shut-off valve in one unit
Mounts directly onto regulator inlet
High performance filtration capability with replaceable filter
Resin impregnated cellulose element rated at 40 micron nominal (20 available)
Bonded ceramic magnet traps fine metallic particles
Ambient Temperature rating -40°F to +250°F
12 volt DC
Rated for use with fuel, air and other media
Orifice size .110”
Superior quality construction, corrosion resistant — solid brass, plated steel and anodized aluminum
Every unit 100% functionally tested for low/high pressure leaks and dielectric breakdown
1/4” male pipe outlet
Cross References Part number: 00591-31736-81, FL-218 Beam, 00591-14737-81, INLPG-1068, LP233-7151, SYLP9015
