Fuel Type ……………………………….. LPG Liquid/Vapor,

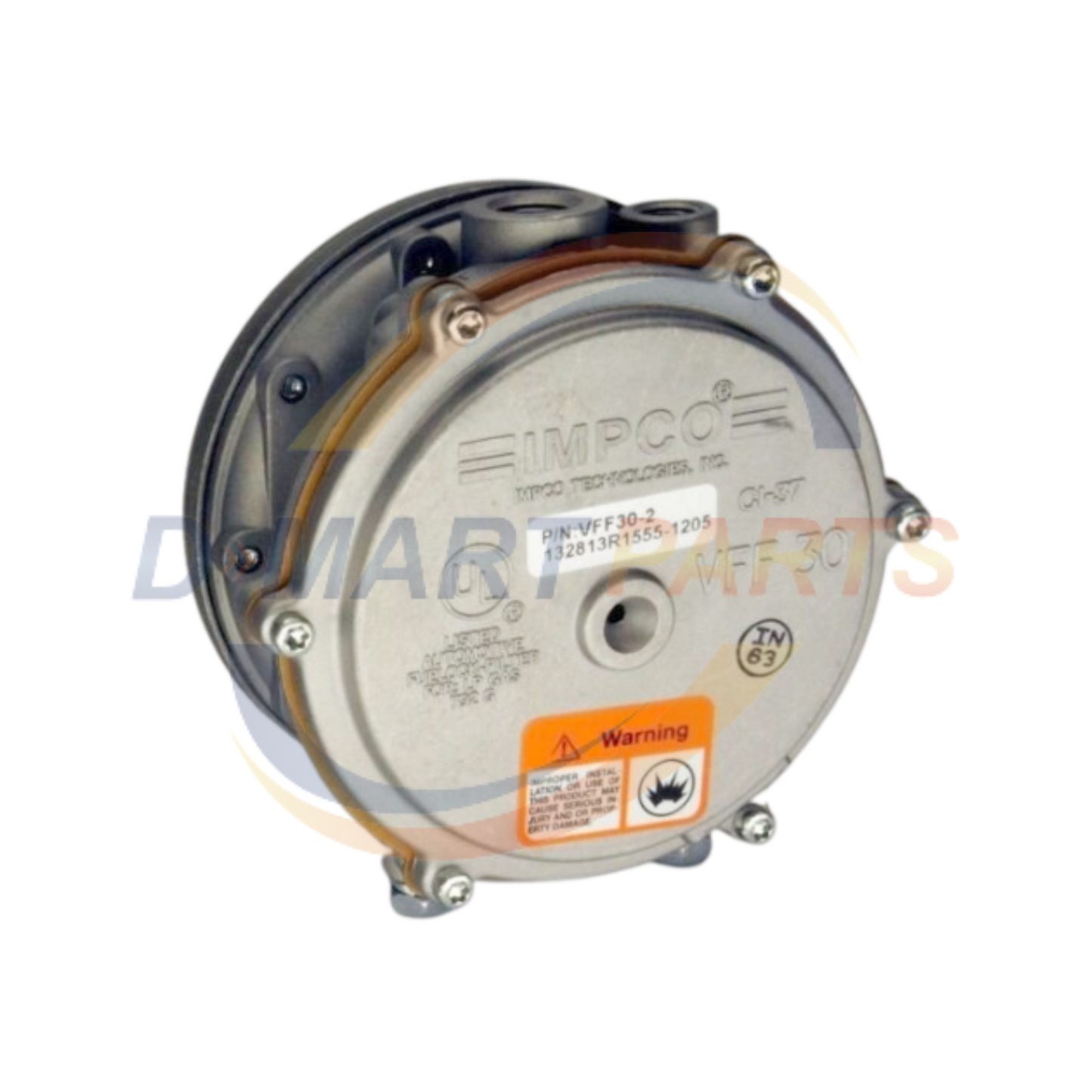

The Century VFF30 is a combination fuel lock off and filter engineered for use with LPG or natural gas. A pressure of 1.69 kPa (0.5" Hg) is required to open the lock off. The VFF30 is suitable for engines up to 242 kW (325 hp) at a maximum working pressure of 2,150 kPa (312 psi). The filter element is fully serviceable. The VFF30-2 has a silicone diaphragm
Inlet Pressure (maximum) …………. 312 psi (21.51 Bar)
Flow Rate ……………………………….. 26.7 CFM (12.6 L/s)
Operating Temperature Range…… -40°F to +250°F (-40°C to +121°C)
Filtration ………………………………….. 40 Micron
Vacuum Activation
Minimum Opening ……………. 0.50” w.c. (0.12kPa)
Fully Opened ……………………… 11.5” w.c. (2.86 kPa)
Minimum Operating Opening … 2.0” w.c.(0.50 kPa)
Mounting Position …………………….. Vertical (as shown above)
Normally open
Out Line Size: 1/4"
