D Mart Parts

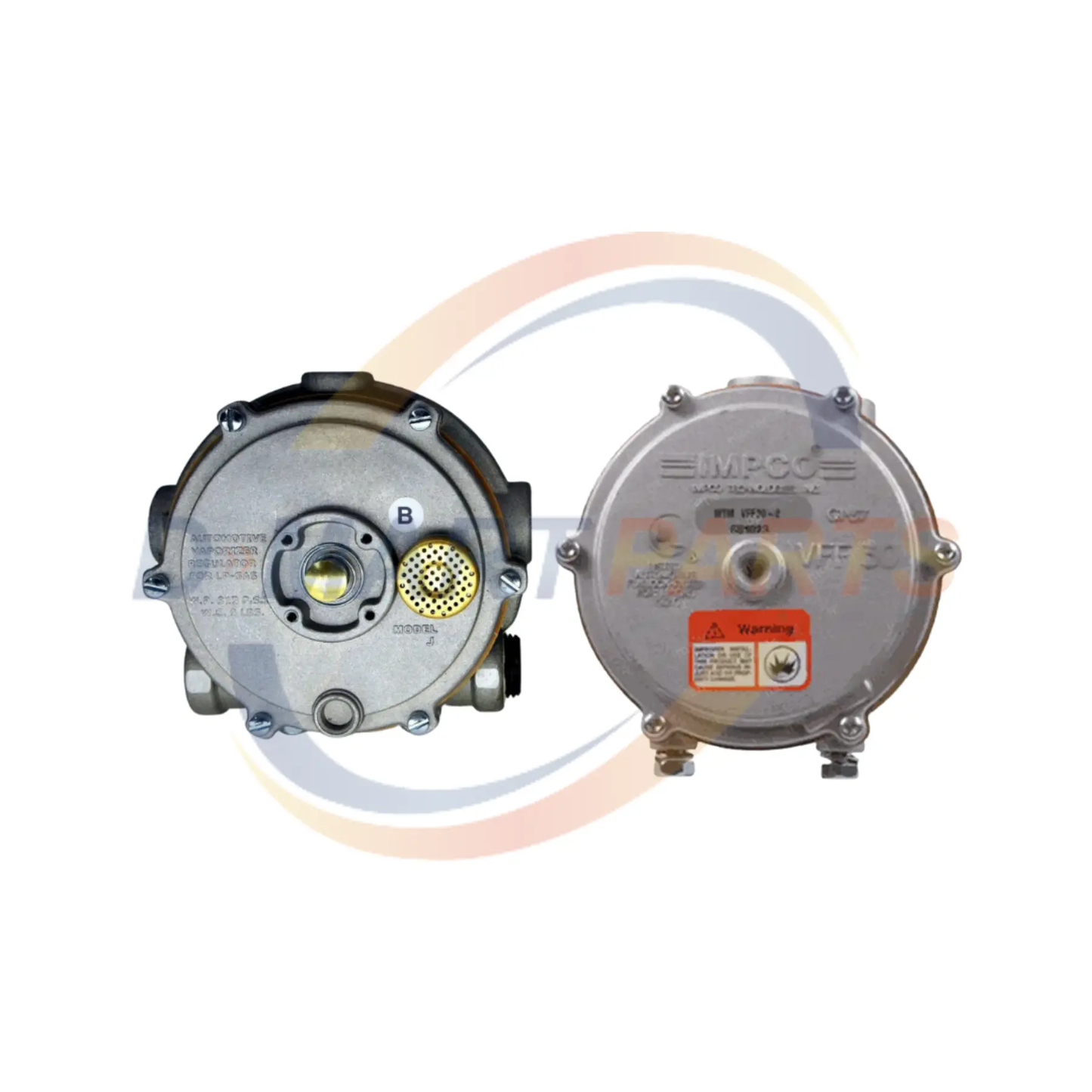

JB-2 CENTURY AND VFF30 LOCKOFF century Model J Regulator Vaporizer LPG Gas
JB-2 CENTURY AND VFF30 LOCKOFF century Model J Regulator Vaporizer LPG Gas
Regular price
$188.00 CAD
Regular price
Sale price
$188.00 CAD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
JB2 CENTURY CONVERTER AND VFF30 LOCK OFF
FORKLIFT TRUCKS LPG GAS SYSTEM UNIVERSAL SYSTEM PROPANE GAS
VACUUM FUELOCK, SHUTS OFF PROPANE WHEN ENGINE STOPS RUNNING
INCLUDES INTERNAL FILTER, SILICONE DIAPHRAGM
FEATURES:
- Propane liquid withdrawal vaporizing regulator
- For liquid-cooled engines up to 100 HP
- deal for mobile industrial equipment applications
- Rated to 312 psi maximum inlet pressure
Specifications |
|
|---|---|
| Fuel Type | LPG Liquid/Vapor |
| Diaphragm Material | Silicone |
| Inlet Pressure, Maximum | 312 psi (21.51 Bar) |
| Inlet Pressure, Minimum | 30 psi (207 kPa) |
| Nominal Outlet Pressure, standard blue spring | -1.5" w.c. (-0.37 kPa) |
| HP/kW | 100 HP (75 kW) |
| Operating Temperature Range | -40 to +250 degrees F (-40 to +121 degrees C) |
| Fuel Filtration | 40 micron |
| Heating Chamber Source | Required for liquid LPG |
| Mounting Position | Vertical recommended. Horizontal position can be used when fuel contamination can be controlled with HD-5 or HD-10 specified LPG fuel |
| Applications: Mobile, stationary, industrial, and automotive | |
