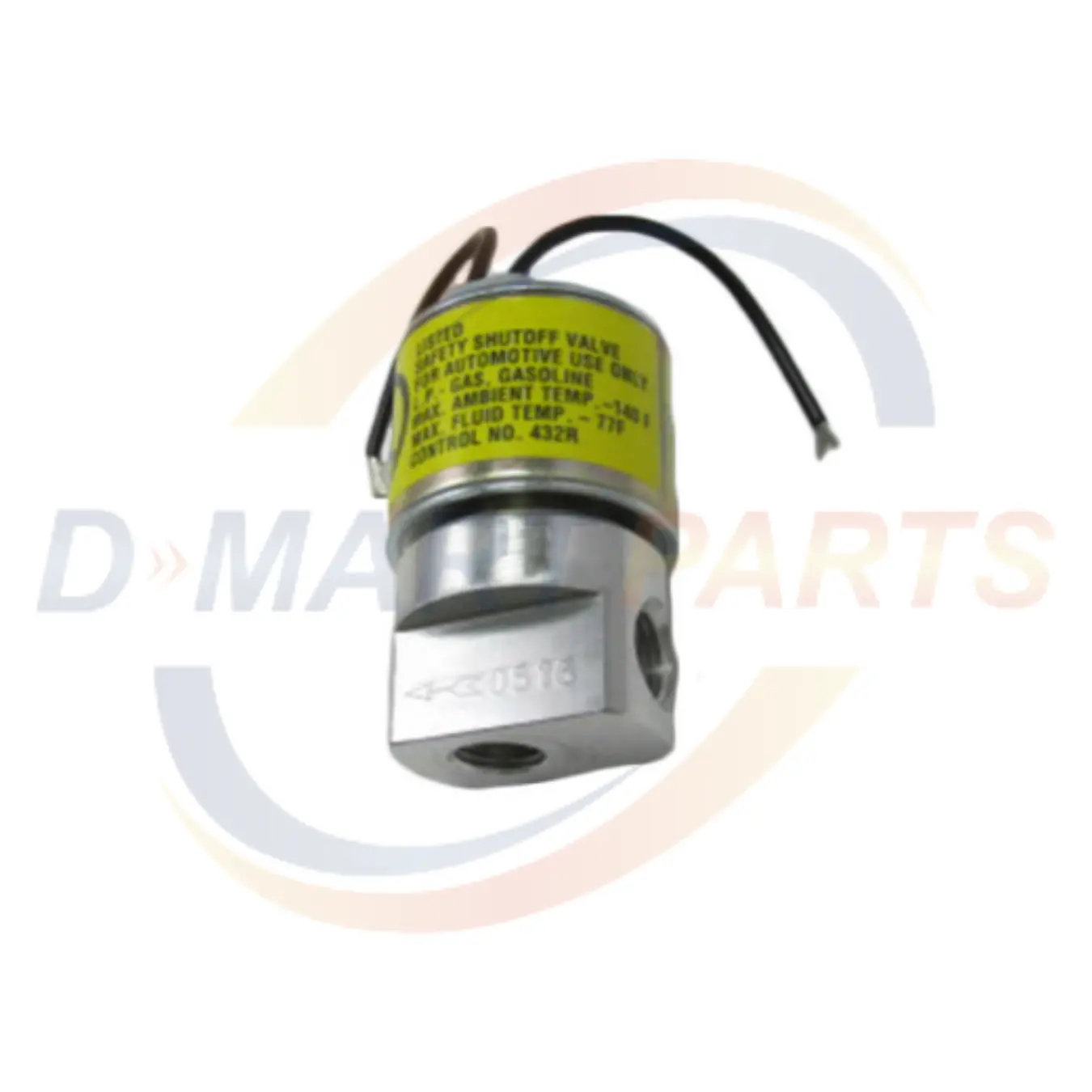

This Valve is a pilot operated 12 volt electrically operated fuel shut off.
This is a U.L. listed valve for LPG and gasoline.
90° inlet to outlet with 1/4 NPT threads.
LOCK-OFF 12 VOLT 90° CONNECTION WITHOUT CONNECTOR
Specifications
Voltage 12 Volt DC
Watts 6
Amperage .25
Maximum Pressure 312 P.S.I.
Orifice 1/4"
Maximum Ambient Temperature 140°F
Maximum Fluid Temp 77°F
Min. Pressure: 1/4 P.S.I.
Lead Termination: (1) #10 Ring Ground Terminal to top of coil (1) .156 Bullet Terminal for switched positive connection
